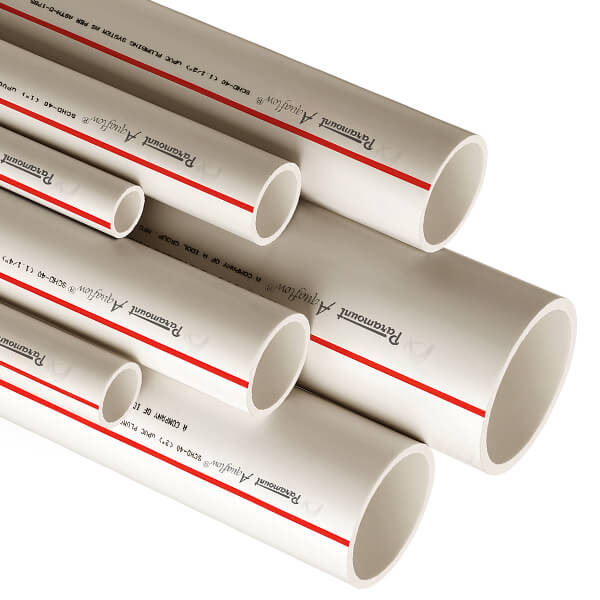

"Paramount Aquaflow"cPvc plumbing system is manufactured using world’s best material and technology. It is a safe, long lasting and cost effective solution for hot and cold water. This system is suitable for all plumbing and potable water application. This pipes are made of chlorinated polyvinyl chloride and it is available in complete range from 15 mm to 50mm ( ½” to 2”) as per copper tube sizes (CTS). These pipes are available in SDR 11 and SDR 13.5. Pipes in CTS are manufactured according to IS:15778 standards. “Paramount Aquaflow” cPvc plumbing system is designed for Hot and Cold water supply in residential, commercial and public projects, high and low rise building, corporate house and academic institutes, solar healer application etc.
| Pipe Dimensions and Pressure Rating Chart as per IS 15778 ( CTS Series ) | |||||||||||
| Normal Size | Outer Diameter (D) in mm |
||||||||||
| Wall Thickness (t) in mm | Working Pressure at | Wall Thickness (t) in mm | Working Pressure at | ||||||||
| 27ºC | 82ºC | 27ºC | 82ºC | ||||||||
| mm | inch | Min | Max | Min | Max | Kgf / cm2 | Min | Max | Kgf / cm2 | ||
| 15 20 25 32 40 50 |
½” ¾” 1” 1 ¼” 1 ½” 2” |
15.8 22.1 28.5 34.8 41.2 53.9 |
16.0 22.3 28.7 35.0 41.4 54.1 |
1.70 2.00 2.60 3.20 3.80 4.90 |
2.20 2.50 3.10 3.70 4.30 5.50 |
27.60 27.60 27.60 27.60 27.60 27.60 |
6.80 6.80 6.80 6.80 6.80 6.80 |
1.40 1.70 2.10 2.60 3.10 4.00 |
1.90 2.20 2.60 3.10 3.60 4.60 |
21.80 21.80 21.80 21.80 21.80 21.80 |
5.50 5.50 5.50 5.50 5.50 5.50 |
Paramount Aquaflow” cPvc fittings are available in sizes 15 mm to 50 mm ( ½” to 2”) These fittings are manufactured as per ASTM D-2846 SDR 11 specifications. Our cPvc fittings are quality product in terms of Longevity, Performance and can be easily installed using cPvc Solvent cement, thus ensuring leak–proof joints.
