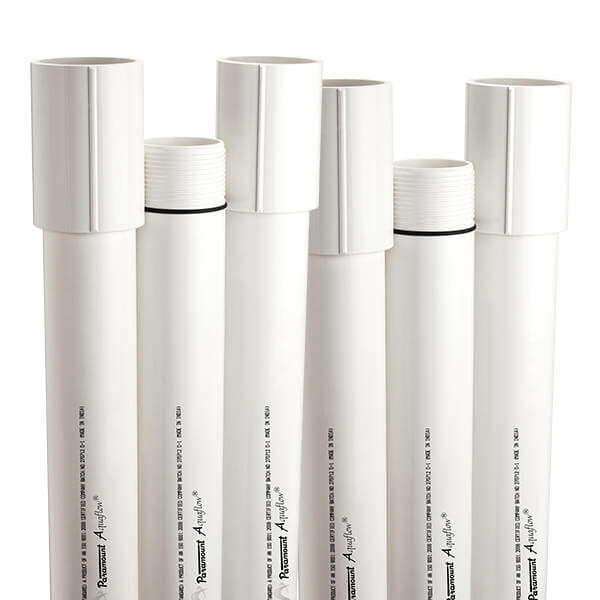

uPvc Column Pipeshave been specially designed and manufactured under stringent quality standards. They are tested to withstand system load comprising of pump, water and pipe weight with adequate factor of safety. Due to unique design of square threads, they can withstand considerable shock and jerk load during operation. Pipes supplied with seprate couplers are integrally locked with the pipes. “Paramount Aquaflow” column pipes for submersible pump offer many advantages like lightweight, high tensile load capacity, leak proof joints and long life with economy and hence emerges as the best option for conventional metal pipes. These pipes are available in 25 mm to 100 mm ( 1” to 4” ) in different classes like light duty, medium duty, standard duty, heavy duty for varying needs based on installation depths 100 mtrs. to 350 mtrs.
| Size | Outer Diameter (D) in mm | Wall Thickness (t) in mm | Recommended Installation Depth in Meter | ||||
| mm | Inch | Min. | Max. | Min. | Max. | Length (L) in Meter | |
| Light Duty | |||||||
| 25 | 1” | 33 | 33.3 | 1.8 | 2.1 | 3 | 130 |
| 32 | 1 ¼” | 42 | 42.3 | 2.4 | 2.7 | 3 | 150 |
| 40 | 1 ½” | 48 | 48.3 | 2.5 | 2.9 | 3 | 130 |
| 50 | 2” | 60 | 60.3 | 2.6 | 3 | 3 | 110 |
| Medium Duty | |||||||
| 25 | 1” | 33 | 33.3 | 2 | 2.3 | 3 | 150 |
| 32 | 1 ¼” | 42 | 42.3 | 2.8 | 3.2 | 3 | 200 |
| 40 | 1 ½” | 48 | 48.3 | 2.8 | 3.2 | 3 | 160 |
| 50 | 2” | 60 | 60.3 | 2.8 | 3.2 | 3 | 130 |
| 65 | 2 ½” | 75 | 75.3 | 2.9 | 3.3 | 3 | 100 |
| 80 | 3” | 88 | 88.3 | 3.3 | 3.8 | 3 | 110 |
| 100 | 4” | 113 | 113.4 | 3.8 | 4.3 | 3 | 100 |
| Standard Duty | |||||||
| 25 | 1” | 33 | 33.3 | 4.2 | 4.7 | 3 | 300 |
| 32 | 1 ¼” | 42 | 42.3 | 4.1 | 4.6 | 3 | 250 |
| 40 | 1 ½” | 48 | 48.3 | 4.1 | 4.6 | 3 | 250 |
| 50 | 2” | 60 | 60.3 | 4.1 | 4.6 | 3 | 200 |
| 65 | 2 ½” | 75 | 75.3 | 4.2 | 4.8 | 3 | 160 |
| 80 | 3” | 88 | 88.3 | 5 | 5.6 | 3 | 170 |
| 100 | 4” | 113 | 113.4 | 5.7 | 6.4 | 3 | 150 |
| Heavy Duty | |||||||
| 32 | 1 ¼” | 42 | 42.3 | 5.2 | 5.8 | 3 | 350 |
| 40 | 1 ½” | 48 | 48.3 | 5.9 | 6.5 | 3 | 350 |
| 50 | 2” | 60 | 60.3 | 5.4 | 6 | 3 | 270 |
| 65 | 2 ½” | 75 | 75.3 | 6.4 | 7.1 | 3 | 250 |
| 80 | 3” | 88 | 88.3 | 7.3 | 8 | 3 | 250 |
| 100 | 4” | 113 | 113.4 | 9.4 | 10.2 | 3 | 250 |
