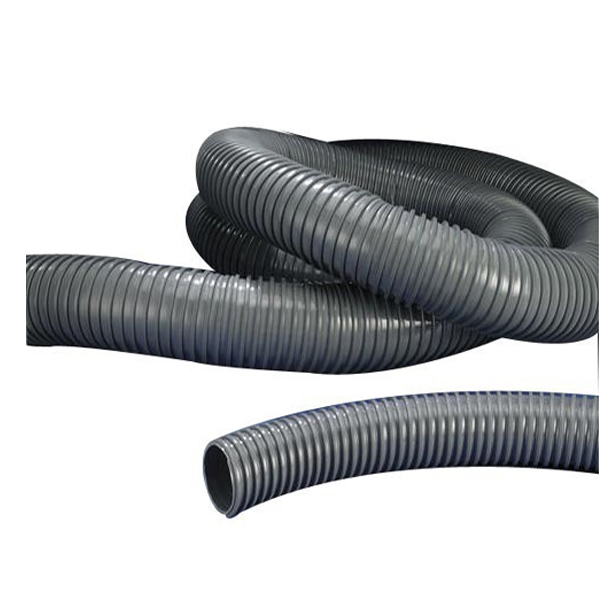

"Paramount Aquaflow” Pvc Duct Hose Pipesare ideal for light duty collection & conveying of Air, Gases, Dust and Light materials. Used for conduits of air, industrial ventilation, collecting duct with exhaust fans in stonemasoning, fiberglass, textiles, asbestos processing and other industries, cooling of motors and air intakes for all machineries, conveying warm air for drying, vacuum cleaning equipments, air conditions for offices, kitchen-range overhead exhaust etc. It is available from 1” to 8” diameter size and in 30 mtr. length & 15 mtr. length with standard Grey/Black Colour.
| Size | Diameter | Standard Lengths mtrs. | |||
| mm | Inch | ID mm | OD mm | ||
| 25 mm | 1” | 25.40 ± 0.5 | 32.10 ±0.5 | 30 | |
| 30 mm | 1 ¼” | 31.80 ± 0.5 | 38.64 ± 0.5 | 30 | |
| 40 mm | 1 ½” | 38.00 ± 0.5 | 45.00 ± 0.5 | 30 | |
| 50 mm | 2” | 50.80 ± 0.5 | 58.20 ± 0.5 | 30 | |
| 63 mm | 2 ½” | 63.00 ± 0.5 | 72.00 ± 0.5 | 30 | |
| 75 mm | 3” | 76.50 ± 0.5 | 84.54 ± 0.5 | 30 | |
| 90 mm | 3 ½” | 90.00 ± 0.5 | 99.00 ± 0.5 | 30 | |
| 100 mm | 4” | 101.20 ± 0.5 | 111.94 ± 0.5 | 30 | |
| 125 mm | 5” | 127.00 ± 0.7 | 137.20 ± 0.7 | 15 | |
| 150 mm | 6” | 152.40 ± 0.7 | 163.10 ± 0.7 | 15 | |
| 200 mm | 8” | 204.00 ± 1.5 | 216.40 ± 1.0 | 15 | |
