Pvc Suction & Delivery Hose Pipes

Pvc Suction & Delivery Hose Pipes

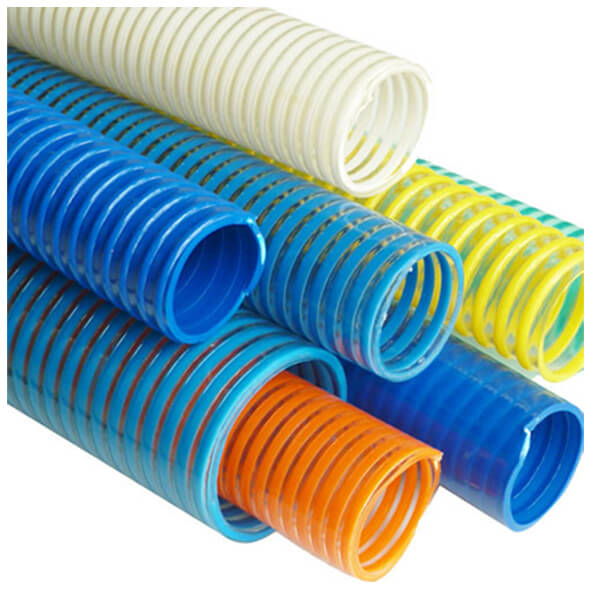

"Paramount Aquaflow" is the most trusted name in Flexible PVC hose pipes in India and around the world. It is most suited for suction and delivery of liquids/gases in varied applications. Its biggest strengths against rubber hoses are convenient, light-weight and flexible. At our plant all the hoses are manufactured under strict quality control and with advanced technology. Heavy duty hoses are suitable for delivery of abrasive materials in industries such as coal & mineral mines, stone & lime quarries, sewerage disposal, aqua culture, paper mills, cement, chemicals, petrochemicals, oil exploration & construction etc. It ranges from ¾” to 6” in 30 mtr. standard length and in Green / Grey & Blue & Olive Green Colour. Customized lengths like 15 mtr. / 45 mtr. & 50 mtr. are also available.

Dimensions and Water Pressure Rating at 23° C as per ASTN D – 1785
Normal Size Diameter Bending Radius Mm Pressure (at 30ºC) Standard Lengths mtrs.
Inch mm ID mm OD mm Working kg/cm2 Bursting kg/cm2
3/4” 20 19.0 ± 0.5 23.6 ± 1.0 45 6 25 30
1” 25 25.4 ± 0.5 31.5 ± 0.5 48 8 25 30
1 ¼” 30 31.8 ± 0.5 38.8 ± 0.5 68 7 21 30
1 ½” 40 38.0 ± 0.5 46.3 ± 1.5 70 5.5 18 30
2” 50 50.8 ± 0.5 60.8 ± 1.5 100 4.5 18 30
2 ½” 65 63.5 ± 1.0 74.5 ± 1.5 120 4.5 18 30
3” 75 76.2 ± 1.0 87.2 ± 1.5 155 4.5 18 30
4” 100 101.2 ± 1.5 114.2 ± 2.0 213 4 14 30
5” 125 127.0 ± 1.5 141.0 ± 2.0 230 3 10 15/18
6” 150 152.4 ± 1.5 169.4 ± 2.0 375 2.5 9 15/18
