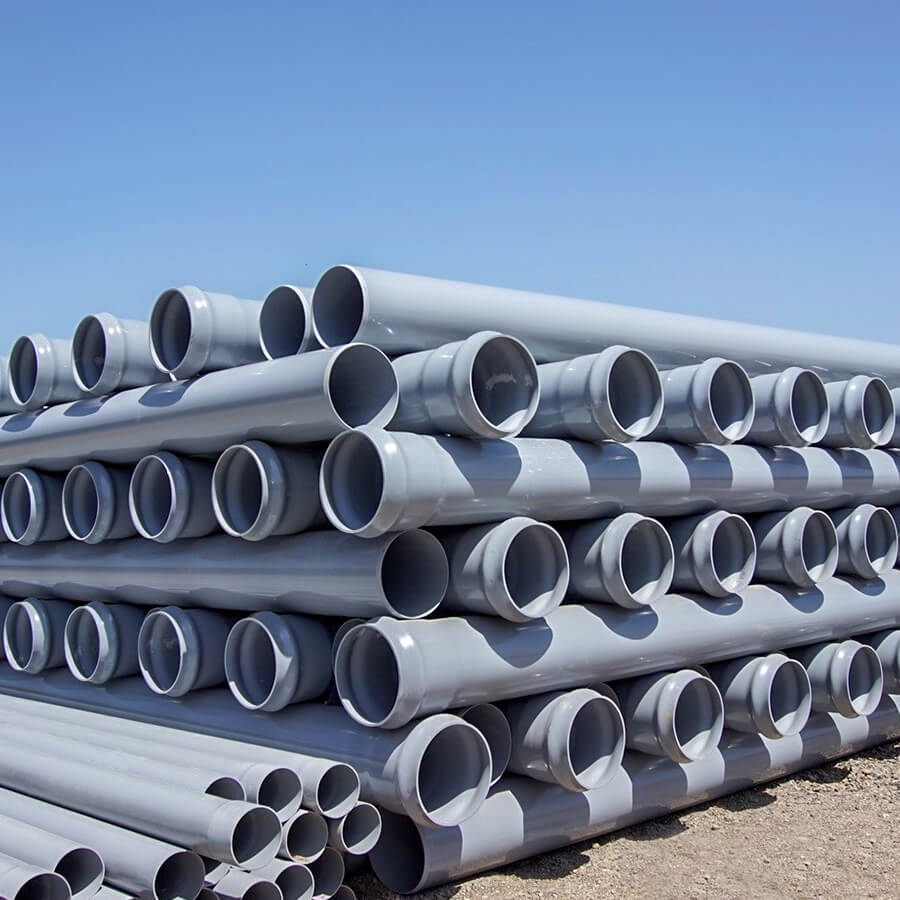

We offers an axhaustive range ofuPvc Pressure Pipes These pipes are manufactured as per IS 4985:2000 standard and are available in 20 mm to 315 mm sizes in different pressure class. Pipes with both types of joints i.e. solvent cement type and rubble seal type joints are available. These pipes are used for variety of applications like agriculture, irrigation, water supply, industrial process lines, swimming pools and fire fighting mains etc. These pipes are superior to C.I., D.I. or R.C.C. pipes and offers numbers of advantages like light weight, easy and fast installation, excellent corrosion and chemical resistance, high flow rates, long life and economy.
| Dimensions Of uPVC Pressure Pipes as per : IS 4985:2000 | |||||||||||
| Wall Thickness (t) mm | |||||||||||
| Nominal Outside Diameter (D) | Tolerance on Outside Diameter | ||||||||||
| Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | ||
| 20 | ± 0.3 | – | – | – | – | – | – | – | – | 1.1 | 1.5 |
| 25 | ± 0.3 | – | – | – | – | – | – | 1.2 | 1.6 | 1.4 | 1.8 |
| 32 | ± 0.3 | – | – | – | – | – | – | 1.5 | 1.9 | 1.8 | 2.2 |
| 40 | ± 0.3 | – | – | – | – | 1.4 | 1.8 | 1.8 | 2.2 | 2.2 | 2.7 |
| 50 | ± 0.3 | – | – | – | – | 1.7 | 2.1 | 2.3 | 2.8 | 2.8 | 3.3 |
| 63 | ± 0.3 | – | – | 1.5 | 1.9 | 2.2 | 2.7 | 2.8 | 3.3 | 3.5 | 4.1 |
| 75 | ± 0.3 | – | – | 1.8 | 2.2 | 2.6 | 3.1 | 3.4 | 4 | 4.2 | 4.9 |
| 90 | ± 0.3 | 1.3 | 1.7 | 2.1 | 2.6 | 3.1 | 3.7 | 4 | 4.6 | 5 | 5.7 |
| 110 | ± 0.4 | 1.6 | 2 | 2.5 | 3 | 3.7 | 4.3 | 4.9 | 5.6 | 6.1 | 7.1 |
| 140 | ± 0.5 | 2 | 2.4 | 3.2 | 3.8 | 4.8 | 5.5 | 6.3 | 7.3 | 7.7 | 8.9 |
| 160 | ± 0.5 | 2.3 | 2.8 | 3.7 | 4.3 | 5.4 | 6.2 | 7.2 | 8.3 | 8.8 | 10.2 |
| 180 | ± 0.6 | 2.6 | 3.1 | 4.2 | 4.9 | 6.1 | 7.1 | 8 | 9.2 | 9.9 | 11.4 |
| 200 | ± 0.6 | 2.9 | 3.4 | 4.6 | 5.3 | 6.8 | 7.9 | 8.9 | 10.3 | 11 | 12.7 |
| 225 | ± 0.7 | 3.3 | 3.9 | 5.2 | 6 | 7.6 | 8.8 | 10 | 11.5 | 12.4 | 14.3 |
| 250 | ± 0.8 | 3.6 | 4.2 | 5.7 | 6.5 | 8.5 | 9.8 | 11.2 | 12.9 | 13.8 | 15.9 |
| 280 | ± 0.9 | 4.1 | 4.8 | 6.4 | 7.4 | 9.5 | 11 | 12.5 | 14.4 | 15.4 | 17.8 |
| 315 | ± 1.0 | 4.6 | 5.3 | 7.2 | 8.3 | 10.7 | 12.4 | 14 | 16.1 | 17.3 | 19.9 |
